PIPE SYSTEMS

High-quality piping systems are used for the installation and correct connection of the extraction technology. To ensure that the system operates smoothly and media such as smoke or dust are safely removed, the system must be optimally adapted to the flow velocity and pipe routing. We offer the right pipe system for your unit and take care of the entire planning and installation. Let us advise you!

Pipe systems

Spiral duct

The spiral duct is characterized by its high level of robustness and durability. In addition, a spiral duct as a sturdy metal ventilation pipe withstands high temperatures and other adverse influences. In contrast to the angular ventilation duct, the entire diameter of the pipe is used, higher flow speeds can be achieved and there is less resistance. The spiral duct can be supplied both galvanized and in stainless-steel executions (V2A).

ADVANTAGES
  • Best price-performance ratio
  • Fast plug connection
  • Sealing possible with adhesive/shrink tape
  • Universally applicable
  • Short-term availability
MEDIA
  • Smoke
  • Dust (limited)

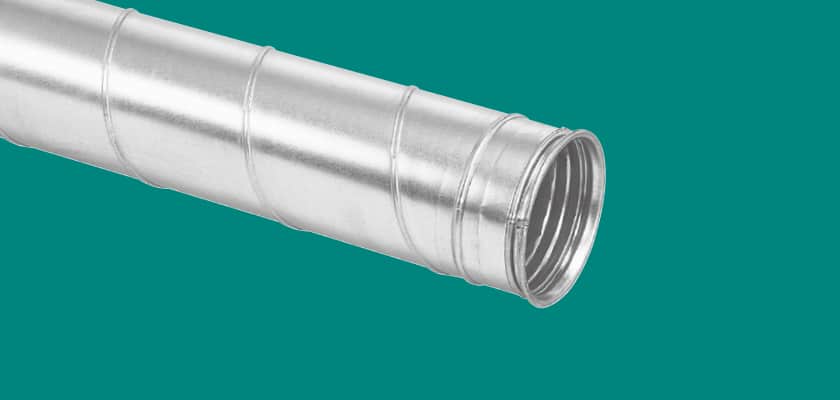

Flanged spiral duct

In contrast to conventional spiral ducts with a plug-in connection, the flanged spiral duct is characterized by the optimal connection between the tube and the molded part and thus achieves tightness class D.

ADVANTAGES
  • Quick, easy assembly
  • No sharp transitions
  • Tightness class D
  • Quick connection via clamping rings
  • No deposits at the transitions
MEDIA
  • Fumes
  • Smoke
  • Chips
  • Dust (limited)

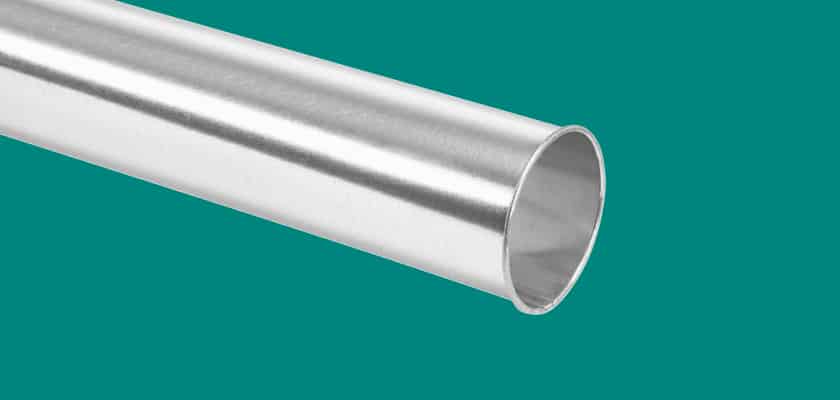

Flanged pipe with longitudinal seams

The flanged pipe with longitudinal seams is characterized by the consistently smooth and seamless inner surface. This saves energy, prevents noise and dust deposits. The connection between the pipe and molded part is made using quick-release clamping rings, without screws or rivets.

ADVANTAGES
  • Quick, easy assembly
  • No sharp transitions
  • Tightness class D
  • Quick connection via clamping rings
  • Low resistance and flow noise
  • No deposits at the transitions
MEDIA
  • Fumes
  • Smoke
  • Dust
  • Chips
  • Granules



Longitudinally welded (steel) pipe with rim

The longitudinally welded pipe with rim/flange is also characterized by the continuously smooth and seamless inner surface and a precisely fitting transition. Due to its durability and robustness, it is suitable for a large number of chemical, physical and thermal processes.

ADVANTAGES
  • High accuracy of fit suitable for abrasive media
  • Tightness class D
  • Quick, easy assembly
  • Quick connection via clamping rings
  • No sharp transitions
  • Low resistance and flow noise
  • No deposits at the transitions
  • Durable, robust and stable
    MEDIA
    • Fumes
    • Gases
    • Smoke
    • Dust
    • Chips
    • Granules
